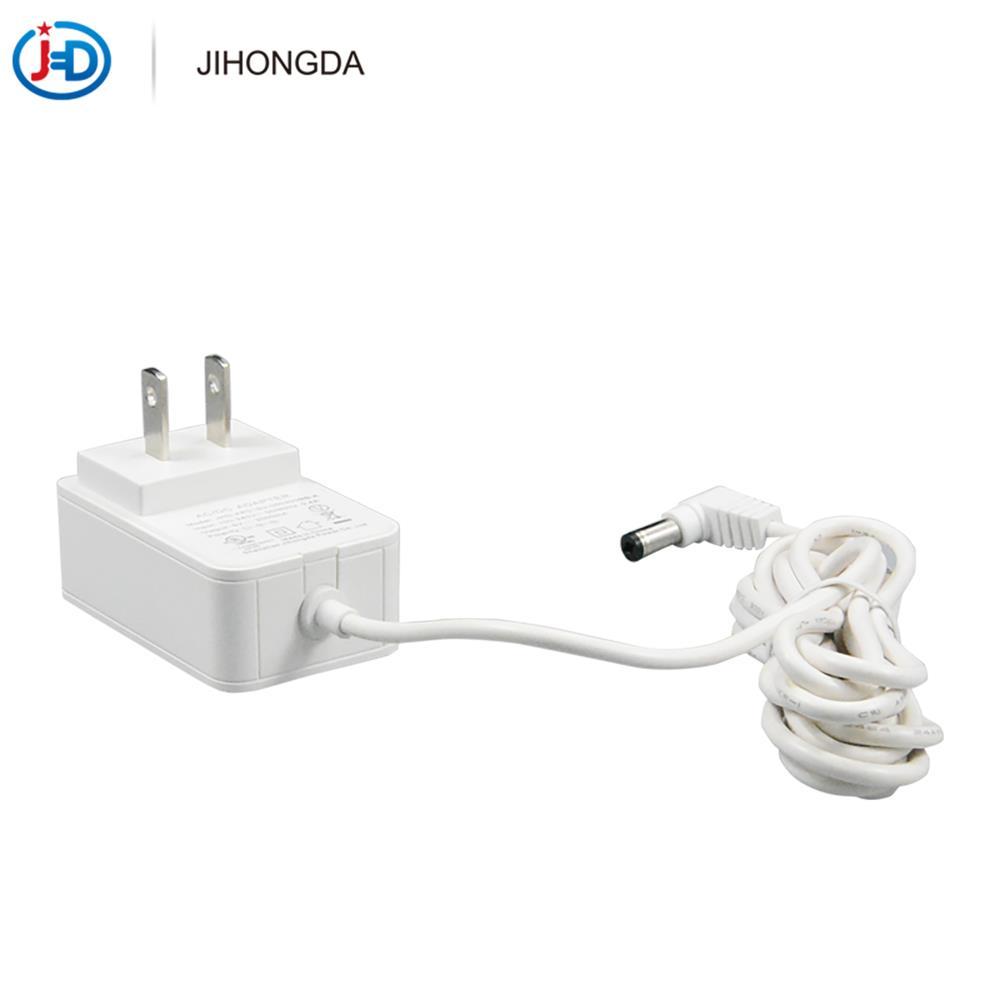

Model: JHD-AP024U-120200BA-A,
Output: 12V2A,
UL FCC 12V2A switching power adapter,
Input voitage range ：100-240V AC
Input voltage frequency ：50-60Hz
Variation Frequency ：47~63Hz
Standby power dissipation ：meet CoC V5,DoE Ⅵ
Safety Certification ：RCM,CB,UL,GS,CCC,SAA,CE,FCC,C-TICK,S-mark,etc.
12V 2A AC-ADAPTER 12V 2000MA AC/DC ADAPTER Product Reliability
Electric Strength(Hi-pot) ：Primary to Secondary: 3000Vac 10mA 60S
Leakage Current ：0.25mA max. at 240Vac / 50Hz input
Protection ：Over-voltage Protection, Over-current Protection,Short Circuit Protection
ESD ：Contact discharge performance is 4KV;Air discharge performance is 8KV
Temperature Rise (Burn-In) : 85-95% Load For Each, 40 ± 5 ℃, 4 Hours.
Insulation Resistance ：100MΩ min. @ primary to secondary add a 500Vdc test voltage
EMC : EN55014/24/32/35 & EN61000
Wide input voltage range, in line with global standards.
